• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Seat trim, Premium Cloth
• SiriusXM Satellite Radio (subscription required)

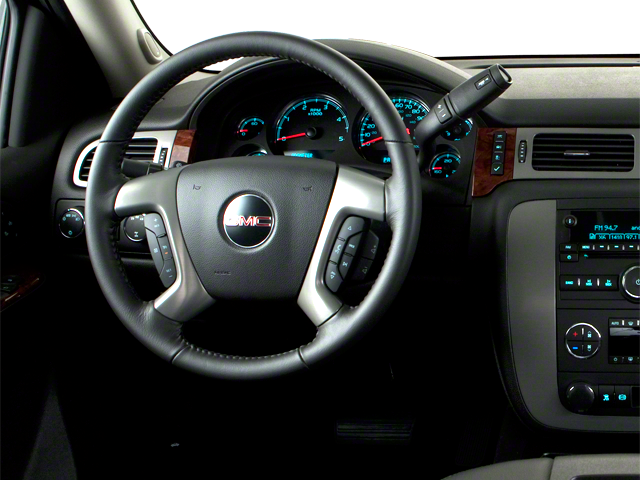

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored

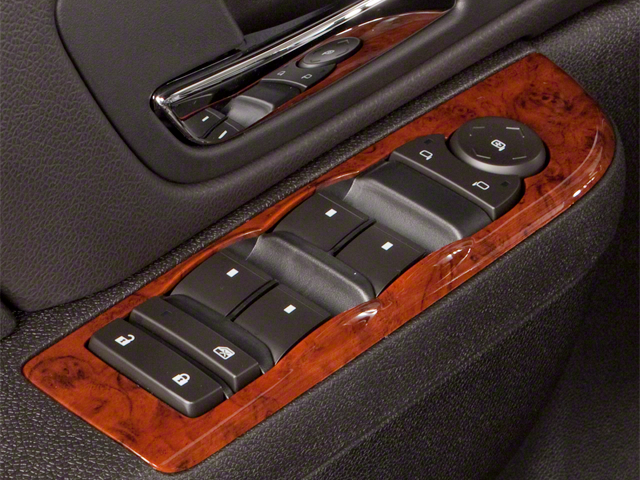

• Windows, power with driver Express-Down

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Rear axle, 3.73 ratio
• Steering, power, recirculating ball
• Suspension, front independent, torsion bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)

• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)

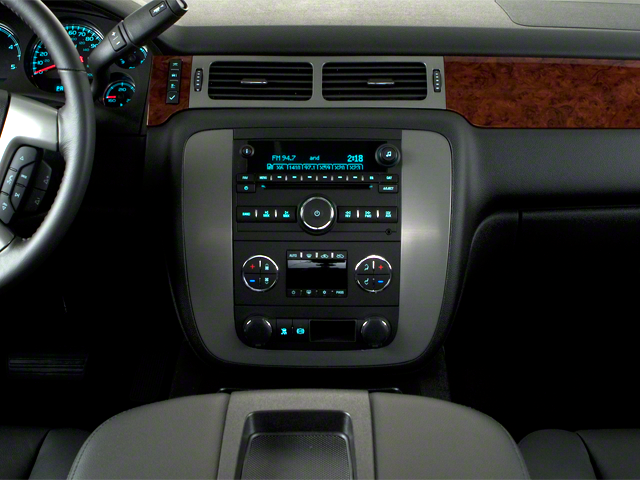

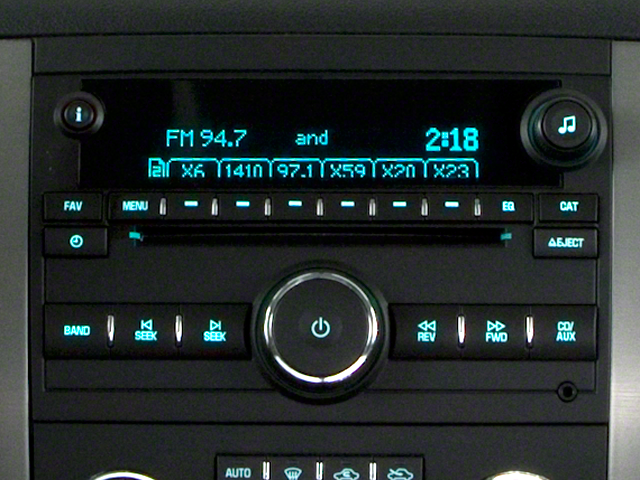

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK

• USB port
• auxiliary input jack
• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• automatic volume
• TheftLock and 36 cross-band presets

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

SLE PREFERRED EQUIPMENT GROUP

• includes standard equipment

SLE PREFERRED PACKAGE

• includes (UK3) steering wheel controls
• (CJ2) dual-zone automatic air conditioning
• (AG1) 6-way power driver seat adjuster
• (UPF) Bluetooth® for phone
• (UUI) AM/FM stereo with CD player and MP3 playback
• (T96) fog lamps
• (A60) locking tailgate and (PPA) EZ-Lift tailgate When ordered with combination of (LC8) 6.0L V8 SFI Gaseous CNG (compressed natural gas) engine
• with hardened valves and valve seats and (AZ3) front 40/20/40 split-bench seat
• (UUI) AM/FM stereo with CD player will not be included.)

AIR CONDITIONING, DUAL-ZONE AUTOMATIC CLIMATE CONTROL

• with individual climate settings for driver and right-front passenger

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

SUSPENSION PACKAGE, OFF-ROAD

• includes 35mm deflective disk twin tube shock absorbers
• off-road jounce bumpers
• 33 front stabilizer bar
• (NZZ) skid plate package and Z71 decals on rear quarters

REMOTE VEHICLE STARTER SYSTEM

• includes Remote Keyless Entry with 2 transmitters
• panic button and content theft alarm

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) wideside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

WHEELS, 20" (50.8 CM) FORGED POLISHED ALUMINUM

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered

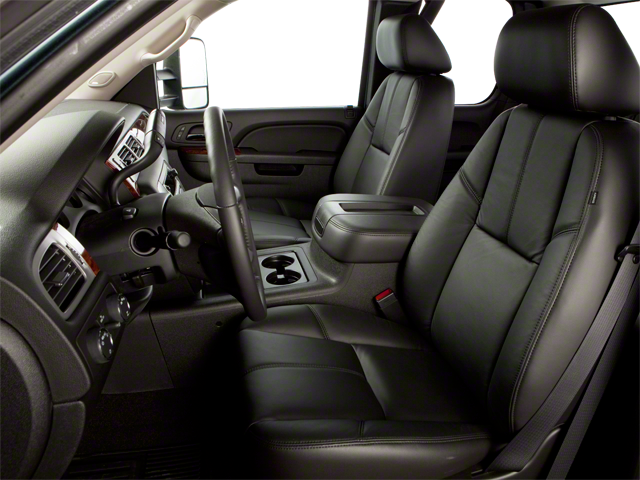

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

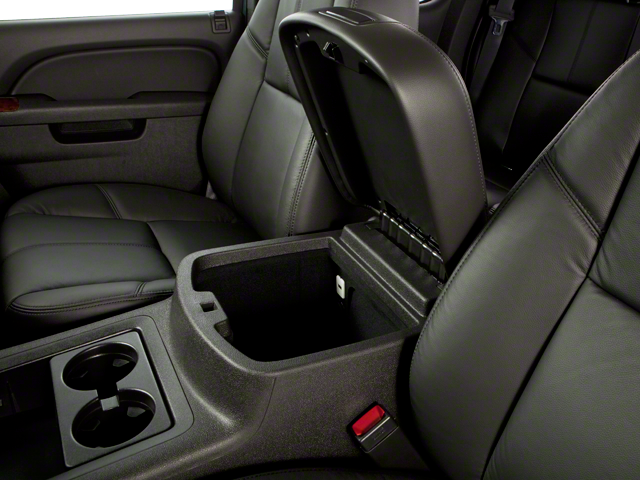

• center fold-down armrest with storage
• lockable storage compartment in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

HD SLE PREMIUM PACKAGE

• includes (PYS) 20" (50.8 cm) forged polished aluminum wheels
• (QFC) LT265/60R20E all-terrain
• blackwall tires
• (DPN) outside heated power-adjustable vertical camper mirrors
• (Z82) heavy-duty trailering equipment
• (G80) heavy-duty automatic locking rear differential
• (CJ2) dual-zone automatic air conditioning
• (UPF) Bluetooth® for phone
• (UK3) steering wheel-mounted audio controls
• (UUI) AM/FM stereo with CD player and MP3 playback
• (AG1) driver 6-way power seat adjuster
• (T96) front fog lamps
• (A60) locking tailgate
• (PPA) EZ-lift tailgate
• (DD8) inside rearview auto-dimming mirror
• (VXH) 6" oval chromed tubular assist steps
• LPO
• bodyside moldings with chrome accents and chrome door handles. When ordered with combination of (LC8) 6.0L V8 SFI Gaseous CNG (compressed natural gas) engine
• with hardened valves and valve seats and (AZ3) front 40/20/40 split-bench seat
• (UUI) AM/FM stereo with CD player will not be included.)

CONVENIENCE PACKAGE

• includes (JF4) adjustable power pedals
• (UG1) Universal Home Remote
• (AP3) remote vehicle starter system
• (UD7) Rear Parking Assist and (C49) rear-window defogger

• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AND MP3 PLAYBACK USB port auxiliary input jack seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume TheftLock and 36 cross-band presets
• UNIVERSAL HOME REMOTE
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• SEAT ADJUSTER DRIVER 6-WAY POWER
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• TRAILER BRAKE CONTROLLER INTEGRATED
• SLE PREFERRED EQUIPMENT GROUP includes standard equipment
• REAR AXLE 3.73 RATIO
• SLE PREFERRED PACKAGE includes (UK3) steering wheel controls (CJ2) dual-zone automatic air conditioning (AG1) 6-way power driver seat adjuster (UPF) Bluetooth® for phone (UUI) AM/FM stereo with CD player and MP3 playback (T96) fog lamps (A60) locking tailgate and (PPA) EZ-Lift tailgate When ordered with combination of (LC8) 6.0L V8 SFI Gaseous CNG (compressed natural gas) engine with hardened valves and valve seats and (AZ3) front 40/20/40 split-bench seat (UUI) AM/FM stereo with CD player will not be included.)
• TAILGATE EZ-LIFT
• STEERING WHEEL CONTROLS mounted audio controls
• GVWR 9500 LBS. (4309 KG)
• AIR CONDITIONING DUAL-ZONE AUTOMATIC CLIMATE CONTROL with individual climate settings for driver and right-front passenger
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• LPO ASSIST STEPS CHROMED TUBULAR 6" OVAL
• SUSPENSION PACKAGE OFF-ROAD includes 35mm deflective disk twin tube shock absorbers off-road jounce bumpers 33 front stabilizer bar (NZZ) skid plate package and Z71 decals on rear quarters
• REMOTE VEHICLE STARTER SYSTEM includes Remote Keyless Entry with 2 transmitters panic button and content theft alarm
• PAINT SOLID
• SONOMA RED METALLIC
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) wideside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• TIRES LT265/60R20E ALL-TERRAIN BLACKWALL
• WHEELS 20" (50.8 CM) FORGED POLISHED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
• FOG LAMPS FRONT HALOGEN
• TAILGATE LOCKING
• EBONY PREMIUM CLOTH SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING center fold-down armrest with storage lockable storage compartment in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• HD SLE PREMIUM PACKAGE includes (PYS) 20" (50.8 cm) forged polished aluminum wheels (QFC) LT265/60R20E all-terrain blackwall tires (DPN) outside heated power-adjustable vertical camper mirrors (Z82) heavy-duty trailering equipment (G80) heavy-duty automatic locking rear differential (CJ2) dual-zone automatic air conditioning (UPF) Bluetooth® for phone (UK3) steering wheel-mounted audio controls (UUI) AM/FM stereo with CD player and MP3 playback (AG1) driver 6-way power seat adjuster (T96) front fog lamps (A60) locking tailgate (PPA) EZ-lift tailgate (DD8) inside rearview auto-dimming mirror (VXH) 6" oval chromed tubular assist steps LPO bodyside moldings with chrome accents and chrome door handles. When ordered with combination of (LC8) 6.0L V8 SFI Gaseous CNG (compressed natural gas) engine with hardened valves and valve seats and (AZ3) front 40/20/40 split-bench seat (UUI) AM/FM stereo with CD player will not be included.)
• CONVENIENCE PACKAGE includes (JF4) adjustable power pedals (UG1) Universal Home Remote (AP3) remote vehicle starter system (UD7) Rear Parking Assist and (C49) rear-window defogger
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Power Outlet
• Cloth Seats
• Driver Adjustable Lumbar

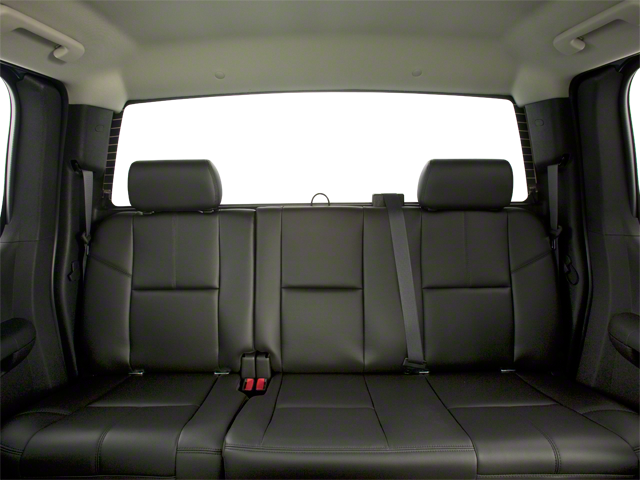

• Rear Bench Seat
• Adjustable Steering Wheel
• Leather Steering Wheel
• Floor Mats
• Power Windows
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Security System
• Keyless Entry
• Power Door Locks
• A/C
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Smart Device Integration
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3638
• Curb Weight - Rear (lbs): 2665
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1425
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9500
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2375
• Maximum Trailering Capacity (lbs): 16400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QFC
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QFC
• Rear Tire Order Code: QHQ
• Front Tire Size: LT265/60R20E
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT265/60R20E
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3110
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 3.57
• Steering Ratio (:1), At Lock: 3.57
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.60
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 77.90
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Front Bumper to Back of Cab (in): 141.40
• Cab to Axle (in): 41.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.20
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.50
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 39.50
• Second Leg Room (in): 34.40
• Second Shoulder Room (in): 65.30
• Second Hip Room (in): 61.80
• Summary
• Vehicle Name: GMC Sierra 2500HD
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
